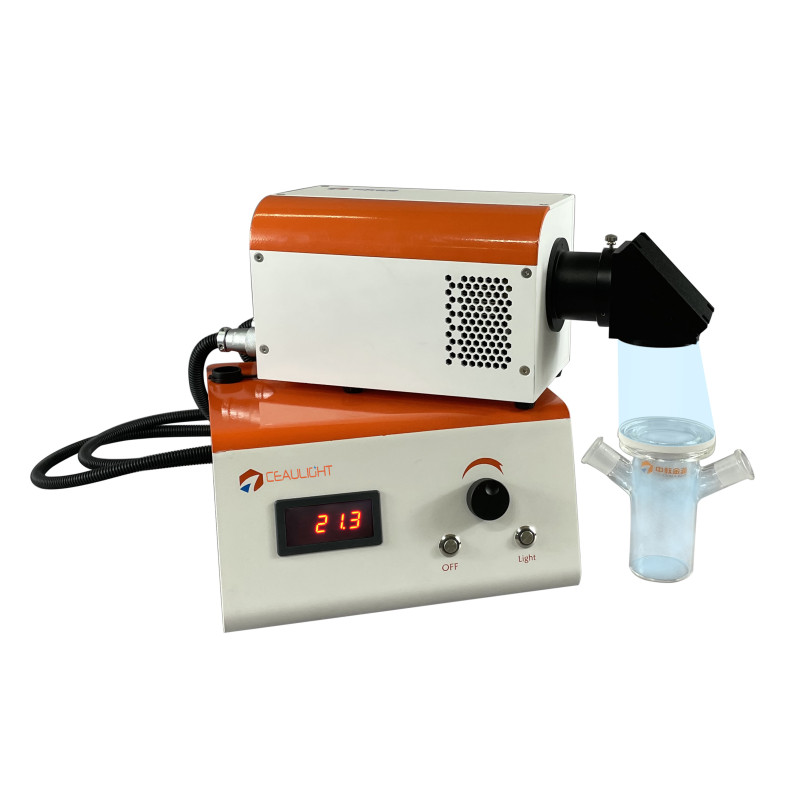

Xenon Lamp (CEL-PF300-T6) - CE Certified
CEL-PF300-T6 is a replacement for model CEL-HXF300-T3. It adopts a newly designed exterior with a modular heat dissipation system, significantly enhancing the stability of light output. It is a CE Certified Xenon Lamp.
CEL-PF300-T6 Xenon Light Source System – Key Features

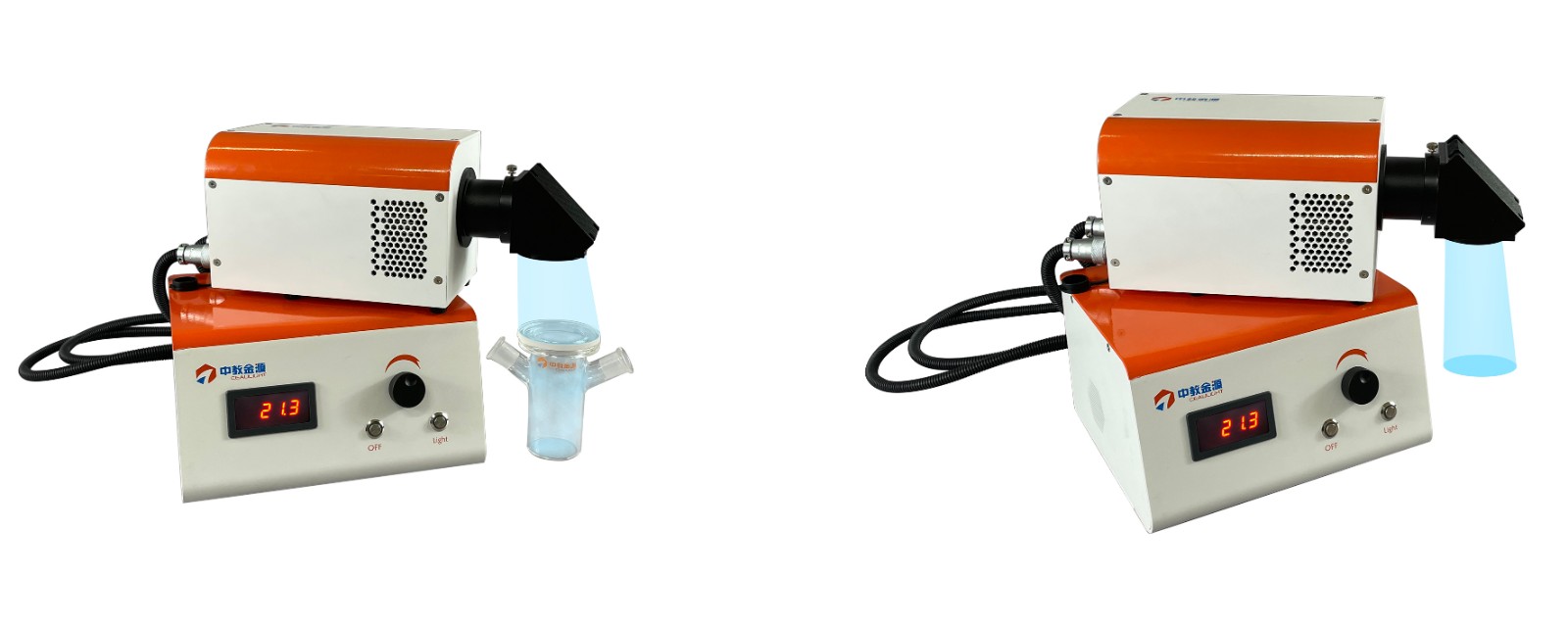

Upgraded Appearance & Modular Design
The CEL-PF300-T6 adopts a newly designed exterior with a modular heat dissipation system, significantly enhancing the stability of light output.
Enhanced Power Supply & Trigger Module
Equipped with a newly developed, upgraded power supply and high-voltage trigger module to improve reliability and performance.
Delayed Fan Cooling Protection
After power-off, the main cooling fan continues to operate for 60 seconds to effectively protect the lamp and extend its service life.
Easy Lamp Replacement
The PE300 xenon lamp can be replaced quickly and easily without the need for complex disassembly or reassembly.
Optimized Optical Path Design
Features an integrated structure that combines the lamp housing, heat dissipation system, electrical isolation, and multi-concentric flange for improved alignment and efficiency.
Advanced Temperature Feedback Control
Incorporates a high-precision temperature control system with high-voltage isolation to enhance operational safety and output accuracy.
Broad Optical Filter Compatibility
Supports all standard M62 and M52 optical filters. Multiple filters can be installed simultaneously for versatile experimental configurations.
Optional Accessories Supported

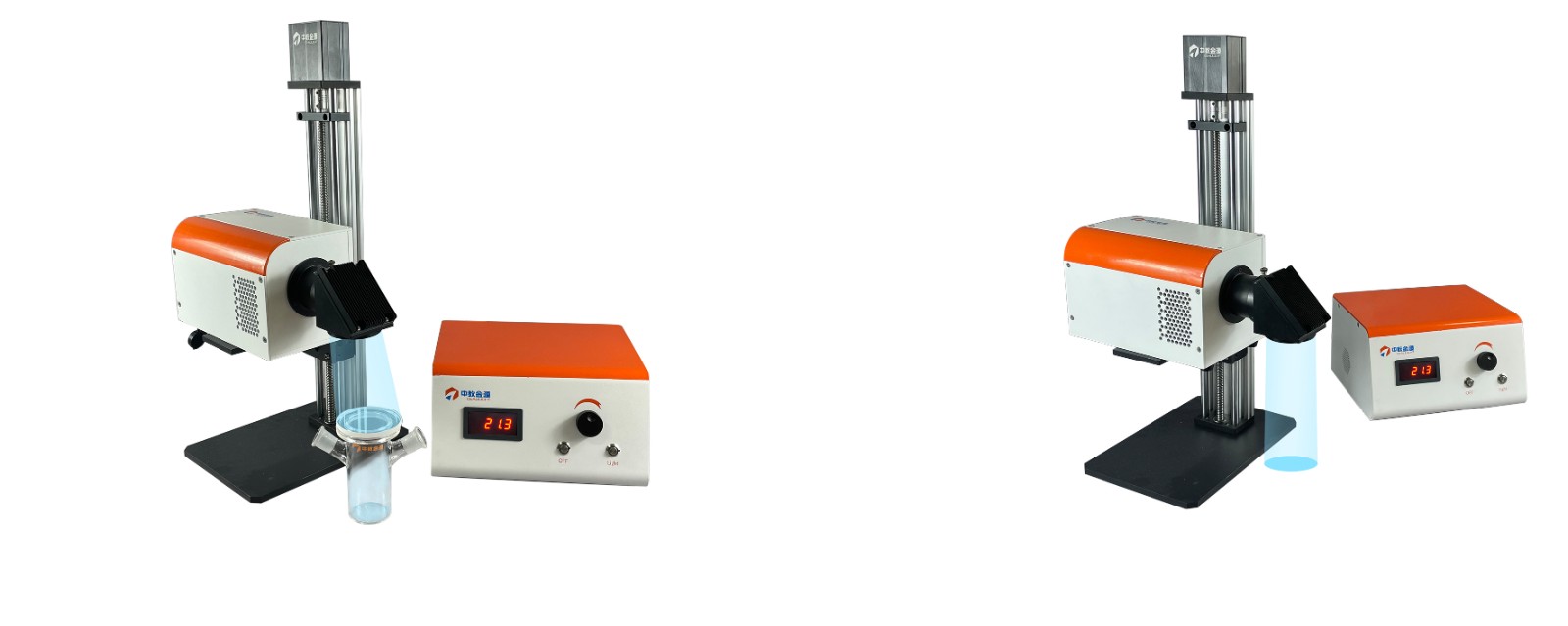

LMP400 Motorized Lifting Platform: Enables easy adjustment of light source height.
Photocatalysis Experiment Cabinet: (Dimensions: 400×400×700 mm), accommodates up to two xenon light sources for advanced photocatalysis studies.
Technical Parameters
|
CEL-PF300-T6 |
CEL-PF300UV-T6 |
|
|
Output Light Power |
10~20 Sun(1Sun=1000W/m2) |
10~20 Sun |
|
Outpu Spectrum(nm)
|
300nm~2500nm（ozone free） |
200nm~2500nm（ozone） |
|
Beam Diameter |
>=60mm |
>=60mm
|
|
UV Output, <390nm (Watts) |
2.6W |
6.6W |
|
IR Output, >770nm (Watts) |
28.8W |
26.8W |
|
Visible Output, 390-770nm (Lumens) |
5000Lu、18.6W、5600K |
4500Lu、16.6W、5050K |
|
Input Power(Watts) |
300W（Igniter DC 30KV，Working DC 14V） |
|
|
Working Current (Amps DC) |
21A（10A~22A） |
|
|
Total Output light Power |
50W |
|
|
Bulb Life（Hours） |
>1000H,Ultimate 6000H |
|
|
Output Stability |
±1% |
|
|
Temperature Control System |
The light source system incorporates multi-point temperature monitoring to ensure stable and consistent light output.
Fan speed is automatically regulated based on real-time system temperature to maintain light intensity stability. The fans will remain active for an additional 60 seconds after shutdown to facilitate effective heat dissipation. |
|
|
Optional |
CEL-LMP400 Lifting Platform CEL-LB70 Photochemical experiment box CEL-NP2000-2 Glare Optical Power Meter |
|
|
Optional quartz coated filter(M62) |
General Optical Filters AREF(Full Reflective，200-2500nm) - Default included with lamp set VisREF (Reflect Visible Light, 350-780nm) UVREF (Reflect UV, 200-400nm) AM1.5G (300-1100nm) UVIRCut400 (Band Pass 400-780nm) UVIRCut420 (Band Pass 420-780nm) CUT800 (Pass Above 800nm) Band Pass Filters QD254,QD275, QD280, QD295，QD300-800QD313, QD320, QD325, QD330, QD334, QD350, QD355, QD360, QD365, QD370, QD375, QD380，QD400,QD405, QD420, QD435, QD450,QD475,QD500,QD520, QD550, QD578,QD600,QD630, QD650, QD670,QD700,QD730, QD765,QD850,QD940 |
|
