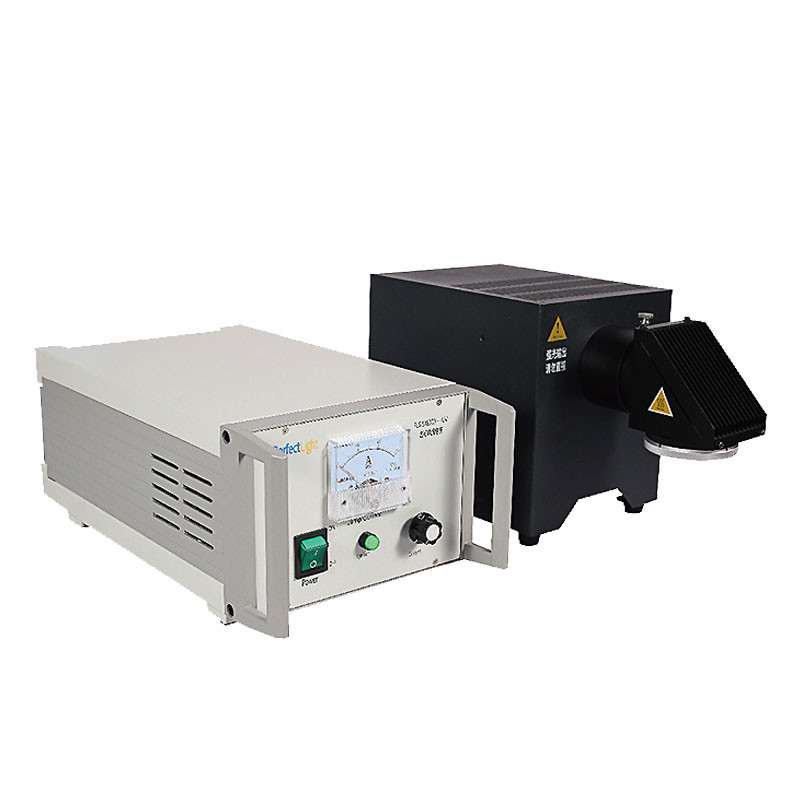

PerfectLight PLS-SXE300+/UV Xenon Lamp (300W)

Xenon Light Source

Key Features

● Basic Xenon Lamp Light Source with high cost-effectiveness;

● Large-sized heat sink design, suitable for prolonged continuous irradiation requirements;

● Reliable performance tested by users for over a decade.



Application Areas

▲ Specialized use ● Moderately suitable ○ Can be used

▲ Photocatalytic Hydrogen/Oxygen Production from Water ▲ Photocatalytic Complete Water Splitting ▲ Photocatalytic CO₂ Reduction

● Photodegradation of Gaseous Pollutants (such as VOCs, formaldehyde, nitrogen oxides, sulfur oxides, etc.)

● Photodegradation of Liquid Pollutants (such as dyes, benzene, and benzene derivatives)

○ Photocatalytic Quantum Efficiency Measurements ○ PEC (Photoelectrochemical) Experiments ○ Photosynthesis ○ Membrane Photocatalysis ○ Photoinduced Color Change

Light Output Characteristics

● Total light power: 50 W;

● Spectral range: 320~780 nm, extendable to 2500 nm;

● Compatible with filters: UV region, visible light region, near-infrared region, and narrow-band light;

● Light source emission angle: Average 6°;

● Light spot diameter: Varies with distance, typically 30~60 mm;

Control Method

● Operating mode: Program-controlled mode;

● Current limit: 21 A;

● Lamp (consumable) lifespan: >1000 h (meeting light intensity requirements under normal photocatalysis conditions);

● Trigger mode: Integrated high-voltage trigger (secondary voltage with no high-voltage transmission);



Basic Parameters

● Lamp power: 300 W;

● Power adjustment range: 150 W~300 W;

X255-00127
