Xenon Lamp (CEL-S500)

Preferred artificial sources to simulate sunlight. Short arc xenon lamp, with density 0.1-5 Sun.

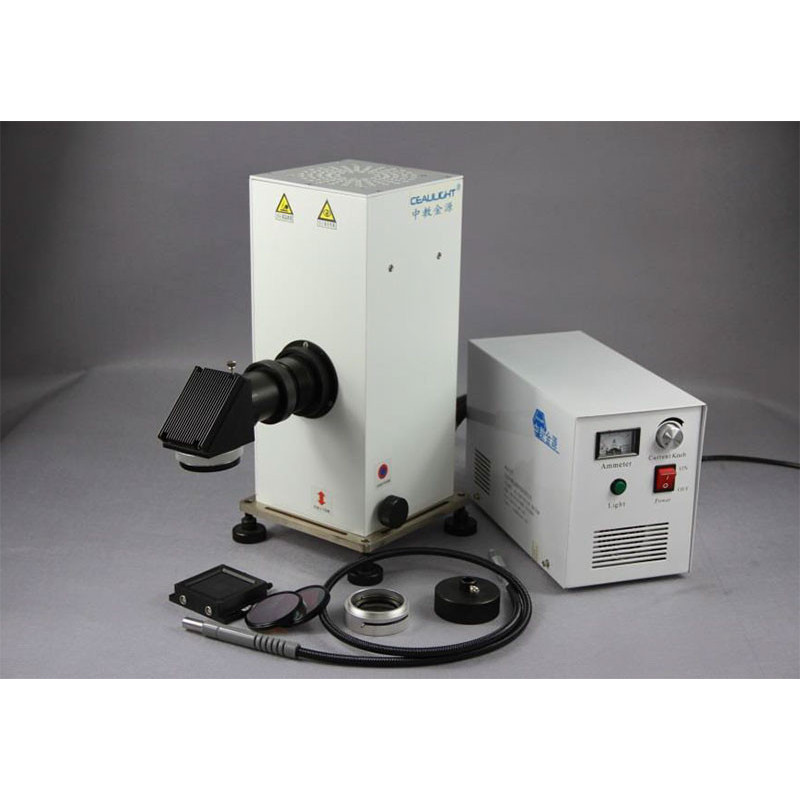

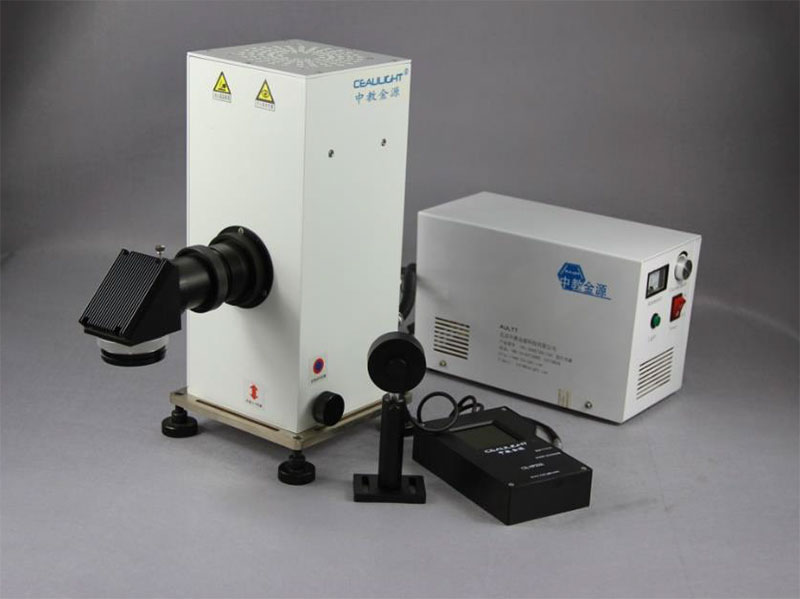

AULIGHT Xenon Lamp System (CEL-S500)

S500 is an preferred artificial source to simulate sunlight. The high color temperature (6000K) of the Xenon lamps is a close match to the solar temperature. This results in very similar solar spectra in the UV and VIS. It can be used for Solar Battery Research, Photoelectric Sensor testing, Surface Photovoltage Spectroscopy, Bioluminescence, Surface defect analysis, etc.

Specifications for HXF300-T3

Feature Name Value
Model CEL-S500

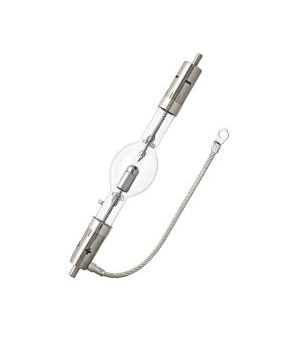

Bulb Type Short Arc, Ball Type (Option to upgrade to OSRAM)
Density Range (1Sun = 100mw/cm2) 0.1 - 5 Sun
Max Power 500W
Current Range 15 - 25A
Spectrum 300 - 2500nm
Power Supply Stability ±0.01%
Light Source Stablity ±0.5%
Beam Diameter 50 - 60 mm
Point Light Diameter (using optical fibre guide) 2 - 3mm
Bulb Life 500 - 1000 hrs
Cooling Type Forced Air Cooling

Available Optical Filters

S500 can work with various sizes/brands of filters (25.4mm, 50.8mm, M52, M62).

  • AREF(Full Reflective,200-2500nm) - Default included with lamp set
  • VisREF (Reflect Visible Light, 350-780nm)
  • UVREF (Reflect UV, 200-400nm)

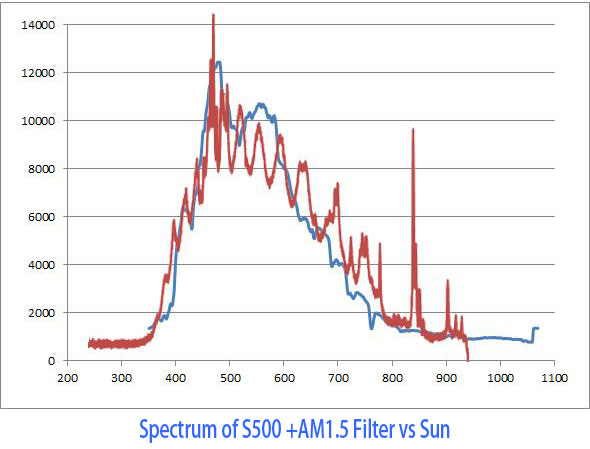

  • AM1.5G (300-1100nm)
  • UVIRCut400 (Band Pass 400-780nm)
  • UVIRCut420 (Band Pass 420-780nm)
  • CUT800 (Pass Above 800nm)

Band Pass Filters

  • QD254, QD275, QD280, QD295
  • QD300-800
  • QD313, QD320, QD325, QD330, QD334, QD350, QD355, QD360, QD365, QD370, QD375, QD380
  • QD400, QD405, QD420, QD435, QD450, QD475,
  • QD500, QD520, QD550, QD578,
  • QD600, QD630, QD650, QD670,
  • QD700, QD730, QD765,
  • QD850,
  • QD940
X257-00154

Download

Solar Steam Generation.pdf

Released Article Related to CEL-S500

Download (3.53MB)

Solar Steam Gen Supplement.pdf

Solar Steam Generation Supplement (CEL-S500)

Download (228.39KB)
