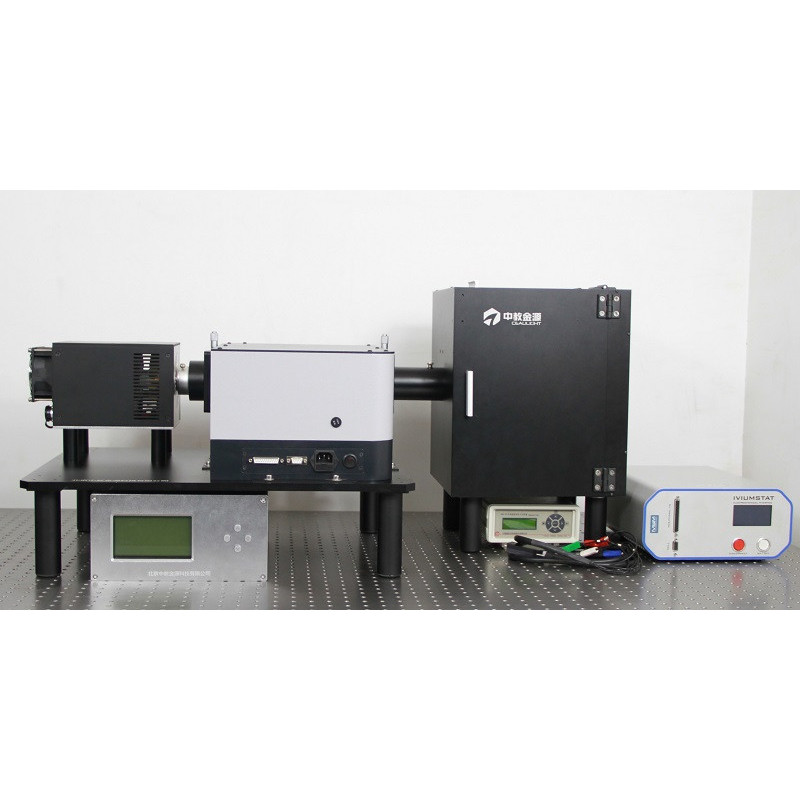

Integrated Xenon System (CEL-SLF300)

Integrated photoelectric test system (CEL-SLF300)

CEL-SLF300 wavelength adjustable light source system standard configuration

• Xenon Light Source: CEL-PF300-T8 Xenon light source;
• Monochromator: CEL-IS151 dual grating scanning monochromator;
• Filter wheel: electric filter wheel IFW6, automatic or manual;
• Accessories: optical horizontal bottom plate, coupling joint, converging lens, closed optical path sleeve, USB cable, etc.;
• Shutter: Auto Shutter is used to control the illumination time (0.1ms), DK25;
• Darkroom: Shielded darkroom 26cm30cm30cm, for isolating of any light or electromagnetic interference;
• Supporting instructions, certificate, warranty card.

Optional Parts

1. CEL-NP2000 Optical power meter, for monitoring the density of light output
2. AULTT-P4000 Fiber spectrometer, for monitoring the spetrum of light output
3. Three-dimensional four-probe sample stage, for placement of samples and precise adjustment
4. 5mm Quartz Fiber, for Lead-out of the monolight
5. Optical Platform, for height adjustment
6. Electrochemical Workstation, for signal collection
7. Different types of Electrochemical reaction cells
