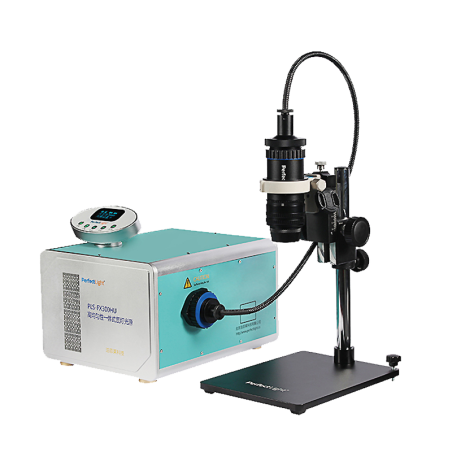

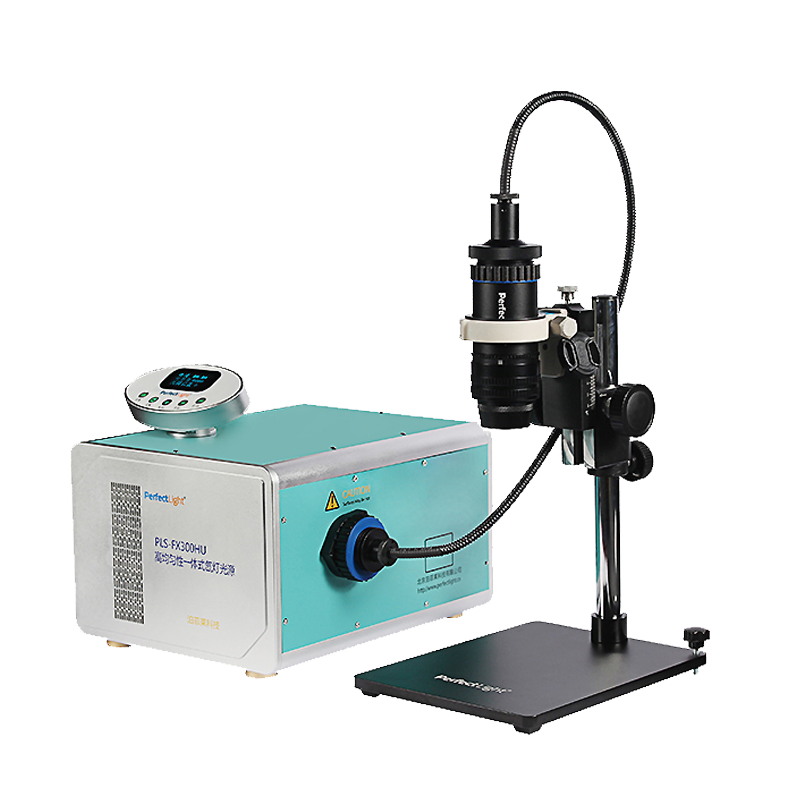

PerfectLight PLS-FX300HU High Uniformity Integrated Xenon Lamp Source
- The PLS-FX300HU high-uniformity integrated xenon lamp light source delivers an output optical power density of ≥3000 mW/cm². It features two light intensity adjustment methods—current control and motorized aperture adjustment, providing flexibility for a wide range of experimental needs.
Key Features
- Tailored for Optoelectronic Materials Testing: Designed with the specific needs of photovoltaic electrode dimensions and irradiation characteristics in mind.
- Adjustable Rectangular Light Spot: Continuously tunable spot size from 10×10 mm² to 50×50 mm².
- High Uniformity Illumination: Meets Grade A solar simulator standards when spot size is ≤20×20 mm², ideal for photovoltaic conversion efficiency (IPCE) measurements.
- High Output Power Density: Delivers ≥3000 mW/cm² (at 10×10 mm² spot size), supporting high-intensity uniform illumination experiments.
- Dual Light Intensity Control: Fine-tuned intensity adjustment via current control and motorized aperture, ensuring precise output.
Application Areas
(▲ Particularly Suitable | ● Moderately Suitable | ○ Can Be Used)
| Application Area | Suitability |
|---|---|
| Photoelectrochemical (PEC) | ▲ |
| Solar Cell Testing | ▲ |
| Membrane Photocatalysis | ▲ |
| Photodegradation of Gaseous Pollutants (VOCs, formaldehyde, NOₓ, SOₓ, etc.) | ● |
| Photodegradation of Liquid Pollutants (dyes, benzene, derivatives) | ● |
| Photocatalytic H₂/O₂ Production | ○ |
| Photocatalytic Water Splitting | ○ |
| Photocatalytic CO₂ Reduction | ○ |
| Photoinduced Color Change | ○ |
| Photosynthesis Simulation | ○ |
Light Output Specifications
- Total Optical Power: 50 W
- Spectral Range: 320–800 nm (with Default VisRef filter; option to change to AllRef filter)
- Filter Compatibility: UV, visible, and narrowband filters supported
- Spot Size: Adjustable from 10×10 mm² to 50×50 mm²
- Irradiance Non-Uniformity: <±4%
Safety Features
- Integrated lamp and power supply design
- Fan failure detection and delayed shutdown
- Automatic protection against overload and overcurrent
Stability and Control
Light Output Stability
- Precision optical feedback system
- Irradiance instability <2% over 8 hours
- Output non-uniformity ±1%
Control & Monitoring
- Centralized digital control via microCPU
- Dedicated light control operating mode
- Current limit: 21 A
- Lamp lifespan: >1000 h under standard photocatalytic conditions
