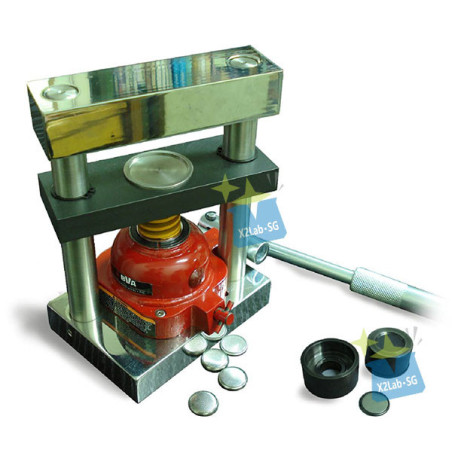

Hydraulic Coin Cell Crimper (Default CR2032)

Crimping machine for assembling coin cell batteries. Default CR2032 crimping die included.

The default crimping die only works for CR2032. It can be changed to other model upon request. Additional die is available at SGD450 each.

COIN CELL CRIMPER

Model: CR-02

  • Note: This crimper requires a dedicated mold for each coin cell type (e.g., CR2025 and CR2032 use different molds). This design ensures greater sealing precision and structural stability compared to universal mold systems.

Main Features

✔ Manual Operation

No electricity or compressed air required — suitable for use in glove boxes and portable environments.

✔ Hydraulic Press System

Equipped with a built-in hydraulic jack, capable of delivering up to 10 tons of pressing force for efficient and reliable crimping.

✔ Quick-Change Crimping Mold

The mold is securely placed on the platform without bolts, enabling fast mold replacement. Easily switch between different coin cell types by replacing the mold set.

✔ Compact & Space-Saving

Small footprint (155W × 110D × 195H mm) makes it ideal for glove box operations or limited-space environments.

Operation Steps

  1. Each mold set consists of two parts: a core and a cavity.
  2. Place the coin cell assembly into the cavity mold and cover it with the core.
  3. Position the complete mold set on the crimping platform.
  4. Gently pump the hydraulic jack until the upper plate compresses the cell. Crimping is completed with a short stroke.
  5. Release the jack and remove the mold to retrieve the sealed coin cell.

Specifications

  • Dimensions: 155 mm (W) × 110 mm (D) × 195 mm (H)
  • Weight: 10 kg
  • Press Force: Up to 5 tons

Material Details

  • Frame: SUS 316 Stainless Steel
  • Hydraulic Jack: Carbon Steel with paint coating
  • Crimping Mold: SKD11 Tool Steel (Carbon Steel for molds)

X254-00080
