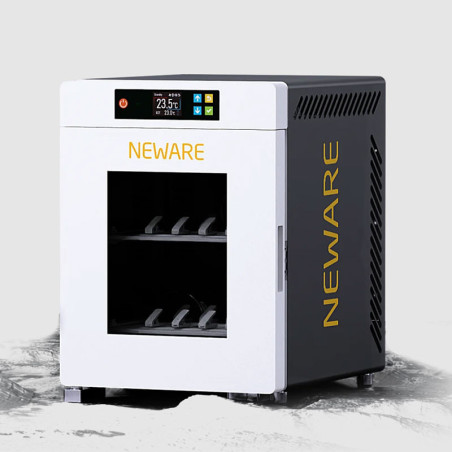

Model: MHW-25-S. Testing Channel is not included.
The Temperature Chamber is designed for testing coin cell and pouch cell batteries under controlled temperature conditions, making it ideal for research institutions, universities, and battery manufacturers analyzing performance and reliability across different thermal environments.
15℃ to 60℃, achieved via Thermoelectric cooling (Peltier effect).
Volume: 25L
Chamber: W280mm×D250mm×H330mm
Exterior: W360mm×D450mm×H500mm
Weight About 40kg
Temperature Range: 15℃~60℃
Temperature Flunctuation: < 1℃
Heating Time: 25℃→60℃ ≤30 min
Cooling Timer: 25℃→15℃ ≤60 min
Wiring Hole: φ50mm 2x (with rubber plug)
Communication: Ethernet port
Testing Capacity: Up to 32 Coin Cell (< 100mA), or 8 pouch cell
Total 4 layers (25L), load 2kg/layer
Power: 200W (Max Current: 1A)
* Specifications may be revised when product is upgraded.
