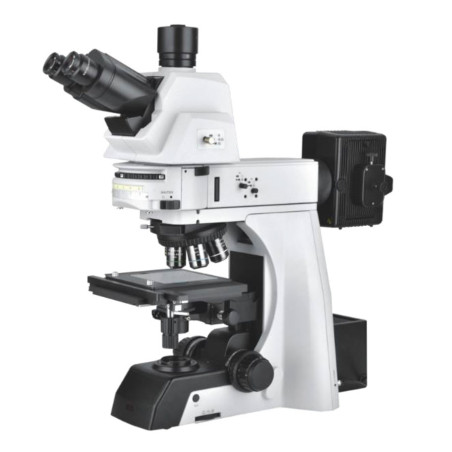

Yuescope YM710R Digital Microscope for Dendrite Observation

Eyepiece lens 10x and objective lens 20x, 6M Pixels Camera, Stage for In-Situ Cell.

Dendrite observation microscope, explore the micro world beyond vision.

Special objective lens for dendrite observation

A dedicated microscopic optical system for dendrite observation, catering for the complex imaging medium of air glass electrolyte. The complex factors composed of air, glass and electrolyte are used as the imaging medium between the objective lens and the sample.Special objective lens

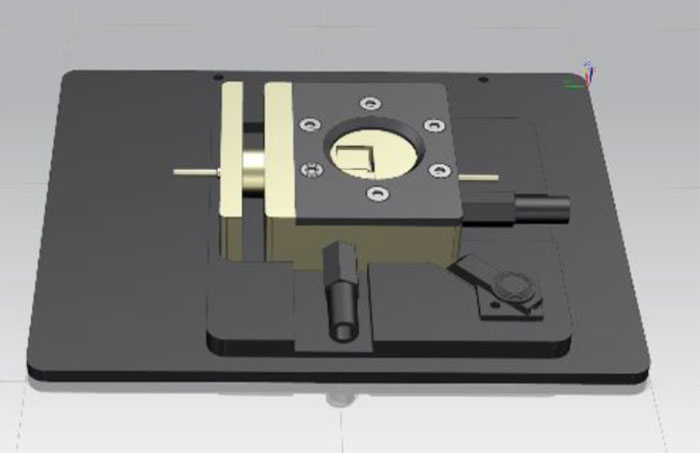

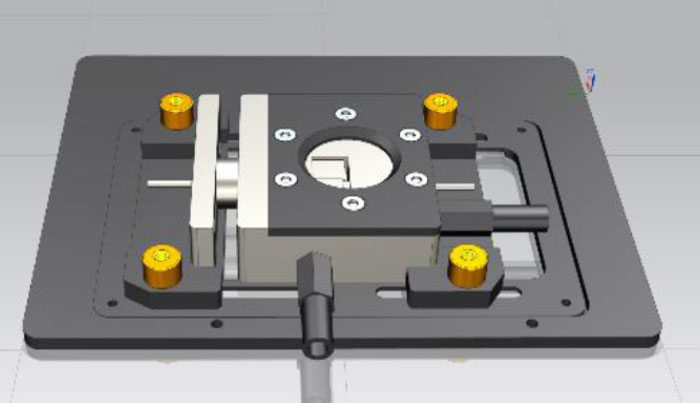

Special bracket for dendrite observation

Specially designed stage suitable for dendrite observation. A variety of special fixtures with different features are available for various specifications of batteries.

Proven Optical Technology

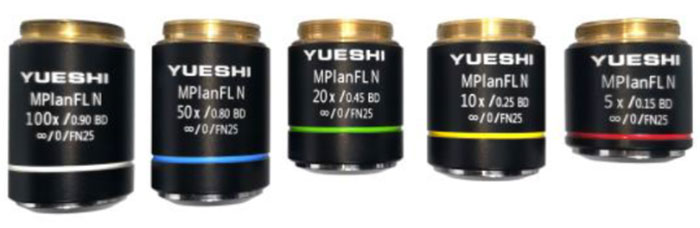

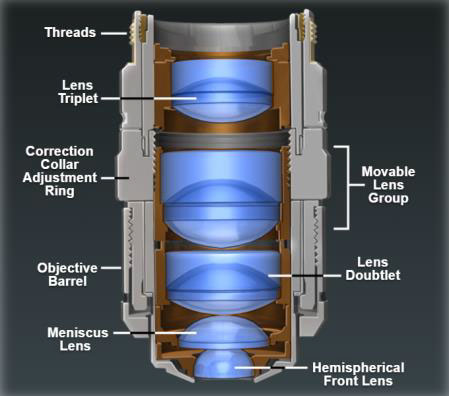

YM-710R comes with a special objective lens for dendrite observation, which make use of multiple compound lenses and multilayer coating technology. These lens can effectively compensate for various aberrations and chromatic aberrations from ultraviolet to near infrared, and eliminate stray light brought by ordinary compound lenses, ensuring high quality outcome. The sharpness, clarity, flatness and color reproduction of the image are improved.Objective Lens

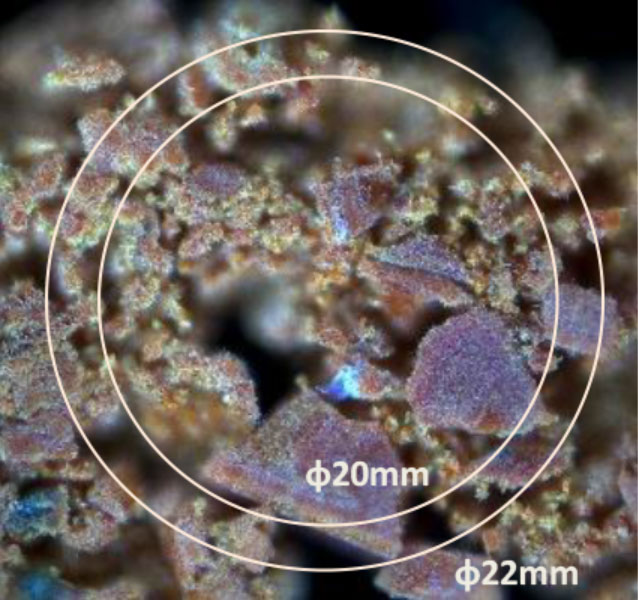

With a large field of view eyepiece with a field of view of 22mm, more can be seen during the initial observation of dendrite growth.

Unbranded
X255-00104

Download

Dendrite observing microscope

Dendrite observing microscope specs

Download (1.18MB)
