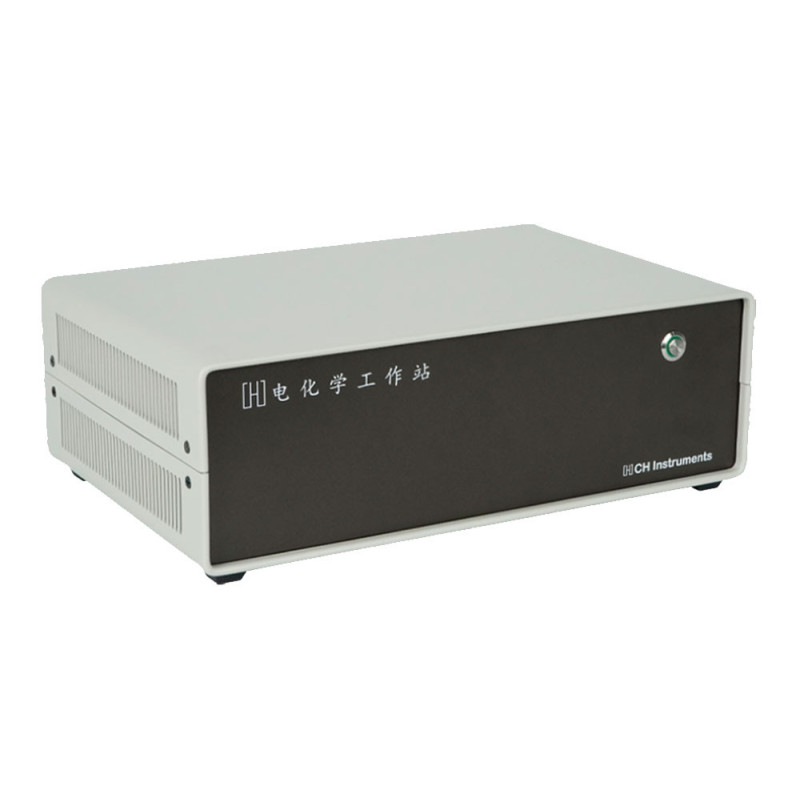

CHI760E CHI760F Dual-Channel Electrochemical Workstation

CHI760F (was CHI760E before 2025).

辰华双通道电化学工作站电极
- CHI760F

The Model 700F series are computerized general-purpose potentiostat / bipotentiostat / galvanostat instruments. A typical application involves a rotating ring-disk electrode (RRDE), but these systems can also be used for other applications where dual channel measurements are essential, such as dual channel electrochemical detection. The system contains a fast digital function generator, a direct digital synthesizer for high frequency ac waveforms, high speed dual channel data acquisition circuitry, (bi)potentiostat, and a galvanostat (only available in select models). The potential control range is ±10 V and the current range is ±250 mA. The instrument is capable of measuring current down to tens of picoamperes. The steady state current of a 10 μm disk electrode can be readily measured without external adapters.

O1CN0145RcqR2HuhEDiNWZ6_!!249529211.pngO1CN01l31BZx2HuhECnRY4X_!!249529211.pngO1CN01ImAun52HuhEDL8AVy_!!249529211.pngO1CN01oJY7AC2HuhECnRoo5_!!249529211.pngO1CN01IL9tEM2HuhEEiG1wM_!!249529211.pngO1CN01jNz9FT2HuhEDLANvL_!!249529211.pngO1CN01on1sNp2HuhEEOkX9t_!!249529211.pngO1CN01UaBVIk2HuhEDjouBf_!!249529211.pngO1CN01eobAPb2HuhEDR0v0g_!!249529211.png

i.php?t.png&rid=gw-1.688f35698f6bf&p=793436111&k=69382&t=1754215786

Unbranded
X258-00195
