Etelux Vacuum Glovebox Lab2000 with Purification System

  • Single Side Single Work Station

This glove box (Lab2000) is specifically designed for scientific research and development requiring ultra-pure environments. Its primary function is to remove O₂, H₂O, and organic gases, making it ideal for applications that demand water-free, oxygen-free, and dust-free conditions. The glove box is widely used in the production and research of lithium-ion batteries and materials, semiconductors, supercapacitors, specialty lighting, laser welding, brazing, material synthesis, OLED manufacturing, and MOCVD processes. Additionally, it is suitable for biological applications such as anaerobic and hypoxic cell culture.

The system primarily comprises a sealed chamber, a transfer chamber, a gas circulation system (including purification and regeneration units), water and oxygen monitoring, a control system, and a vacuum system. The gas circulation operates in a closed loop, ensuring zero leakage throughout the process. An integrated pressure control system maintains constant pressure within the chamber for optimal performance.




Main Technical Indicators and Configuration

1. Cabinet

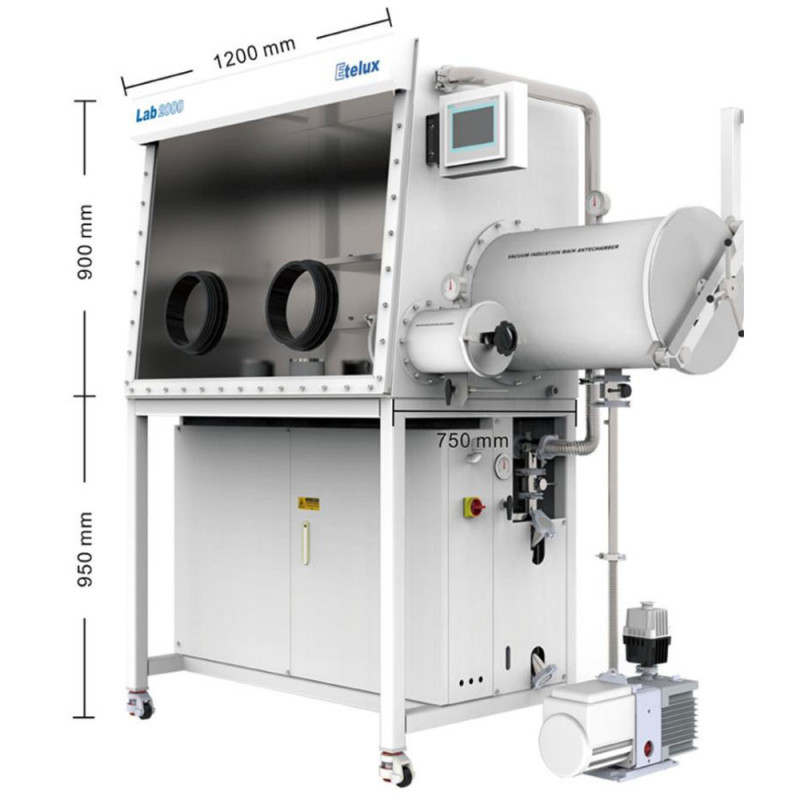

1.1 Dimensions: 1220 mm (L) × 900 mm (H) × 750 mm (W)

1.2 Material: Constructed entirely of Type 304 stainless steel with a thickness of 3 mm

1.3 Filter: 0.3-micron pore size for effective particulate removal

1.4 Butyl Rubber Gloves: Imported from the United States, 0.4 mm thick, with glove port diameter of 8 inches. Glove ports are made of hard anodized, anti-corrosion treated aluminum alloy, diameter 220 mm

1.5 Window: Ergonomic inclined operating surface with a detachable 8 mm safety tempered glass front window. Features high wear and corrosion resistance, excellent light transmission, and is sealed with a 3/8-inch OMEGA sealing ring

1.6 Pressure Control: Capable of maintaining constant positive or negative pressure during operation (-10 mbar to +10 mbar)

1.7 Lighting: Equipped with anti-reflective, energy-saving lamps that provide soft, even illumination

1.8 Shelving: Includes two-tier shelves with integrated display boards inside the cabinet

1.9 Power Supply: Multi-outlet power connection board inside the cabinet (220V ±10%, 50Hz ±10%)

1.10 Interface: Accommodates up to three standard KF-40 ports

1.11 Leakage Rate: ≤ 0.001 vol%/h

1.12 Support Structure: Steel support frame, 950 mm high, with universal casters for easy mobility


2. Transition Chamber

2.1 Shape: Cylindrical, constructed from 304 stainless steel; connects to the glove box via a large axle-locked hatch for convenient operation

2.2 Size: Large transition chamber: Diameter 360 mm, length 600 mm, featuring a piston door and a highly polished sliding tray

Small transition chamber (within the box): Diameter 150 mm, length 300 mm, with manual valve control for air extraction and replenishment

2.3 Tray: Large chamber is equipped with a freely extendable sliding tray for easy material transfer

2.4 Vacuum Level: ≤ 1 bar; both large and small right-side transition chambers are equipped with vacuum gauges and support vacuum operation




3. Control System

3.1 Control Method: Features self-diagnosis, automatic restart after power failure, pressure control, and adaptive functions. Offers automatic operation, circulation management, password protection, and vacuum chamber control—all accessible through an LCD display. Unit operation is managed via a Siemens PLC touch screen interface.

3.2 Pressure Control: Maintains the pressure of both the glove box and transition chamber at predetermined set values.
a) Users can freely set the working pressure range between +12.5 and -12.5 mbar; the PLC automatically adjusts chamber pressure within this range. The default working pressure range is -1 to +3 mbar.
b) If box pressure exceeds 12 mbar, the PLC automatically activates the safety valve to relieve excess pressure, protecting gloves, equipment, and internal materials.
c) Fine adjustments to chamber pressure can be made using a convenient foot pedal.

3.3 Foot Pedal: Allows operators to easily control glove box pressure, providing hands-free convenience during operation.


4. Circulation System (Including Purification and Regeneration System)

4.1 Materials: Utilizes German BASF and American UOP purification materials, along with German Proud valves. The host system features a modular design, integrating a fully automatic electronic gas solenoid valve group, PLC controls, circuits, circulation pump, purifier, and display into a single independent unit for compactness and efficiency.

4.2 Control: Maintains water and oxygen levels below 1 ppm to ensure an ultra-pure environment.

4.3 Adjustment: All adjustments—including heating, evacuation, purification, and regeneration—are controlled via the PLC touchscreen. The entire process, except for 2.5 hours of ventilation, operates automatically and does not require human supervision.

4.4 Working Gas: Compatible with helium (He), nitrogen (N₂), or argon (Ar) as circulating gases.

4.5 Circulating Fan: Features a high-speed, variable-frequency fan with a capacity of 0–100 m³, microprocessor-controlled, constructed from stainless steel, and pressure-tested for reliability.

4.6 Purification Column: Equipped with a single column containing 5 kg of German BASF deoxygenation material and 5 kg of UOP high-efficiency absorbent from the United States, ensuring extended purification capacity. The system can remove up to 2.2 kg of water and absorb 63 liters of oxygen.

4.7 Purification Valve: Fully automatic electric valve for precise and efficient operation.

4.8 Filter: High-efficiency filter with a 0.3-micron pore size, compliant with HEPA standards.

4.9 Regeneration: Regeneration restores the purification system for continued use. The process requires a gas mixture of helium/H₂, nitrogen/H₂, or argon/H₂, with hydrogen comprising 10% of the mixture. The catalyst can be regenerated 10–12 times, with each regeneration cycle lasting 6–12 months. Total catalyst lifespan can reach up to 10 years, depending on usage and maintenance.




5. Display System
The unit is equipped with a Siemens PLC touchscreen interface from Germany, supporting bilingual operation with seamless switching between Chinese and English.


6. Water Analyzer

Brand: MICHELL (UK) or as specified for the user’s environment

6.1 Measuring Range: 0–1000 ppm

6.2 Accuracy: ±1% of the measured value (ppm)

6.3 Display: Analyzer output is integrated with the PLC, and real-time measurements are shown on the touchscreen. Alarm thresholds can be set as needed.

6.4 Control: The gas circulation system can be managed based on user-defined settings to achieve controlled reduction of moisture.

6.5 Operating Environment: -10°C to 50°C


7. Oxygen Analyzer

Brand: AVCRAY (USA) or as specified for the user’s environment

7.1 Measurement Range: Adjustable from 0 to 1000 ppm

7.2 Operating Environment: -10°C to 50°C

7.3 Accuracy: ±1% ppm

7.4 Installation Location: The oxygen sensor is installed directly on the glove box, continuously monitoring internal atmosphere and displaying oxygen levels on the touchscreen, independent of gas circulation.

7.5 Sensor: Electrochemical cell type, providing a precise zero point, minimal drift, excellent corrosion resistance, and low replacement cost (only the sensor cell requires replacement).

7.6 Display: Analyzer output is connected to the PLC; values are displayed in real-time on the touchscreen with configurable alarm thresholds.

7.7 Control: Users can activate automatic circulation to maintain oxygen content within the specified range.


8. Vacuum System
The vacuum pump features adjustable start and stop time controls and is equipped with a British Edwards RV12 vacuum pump, offering a flow rate of 12 m³/h and an ultimate vacuum of 2 × 10⁻³ mbar. The transition chamber can be independently evacuated and controlled at any time.


9. Automatic Cleaning
The automatic gas control system includes an electroplating board. Users can set the desired cleaning duration via the automatic gas cleaning function. After specifying the time, simply press the start button on the touchscreen; the system will clean the box automatically and stop when the set duration has elapsed.


10. Organic Solvent Adsorption System
To protect the purification column from organic solvent exposure, a solvent adsorption column is connected in series with the glove box system. The column is filled with high-quality, high-efficiency activated carbon and activated alumina to prevent hydrofluoric acid formation. With a filling capacity of 7 kg and KF40 interfaces on both the top and bottom, material replacement is straightforward and user-friendly.


11. Equipment Working Conditions (to be provided by the user)

11.1 Power Supply: AC 220V, 1.5 kW

11.2 Grounding: The laboratory must have an independent ground wire with resistance less than 3Ω. It is recommended to use a flat copper conductor with a cross-sectional area of at least 10 mm² from the equipment to the ground.

11.3 Water Supply: Not required

11.4 Relative Humidity: Less than 75%

11.5 Environmental Requirements: The laboratory environment should be free of excessive dust, as well as corrosive, flammable, or explosive gases.

11.6 Inert Gas Supply: Working gas must be supplied at 0.4–0.6 MPa; the operating pressure of the mixed gas should be 0.01–0.05 MPa.

11.7 Gas Provision: The user is responsible for providing all required gases during installation and commissioning, including three cylinders of working gas (each 40 L, purity ≥99.999%) and one cylinder of regeneration gas (a mixture containing 5%–10% hydrogen and working gas, 40 L per cylinder).

11.8 Equipment Footprint: Length × Width × Height: 2000 mm × 1000 mm × 2000 mm

11.9 Floor Load-Bearing Requirement: At least 400 kg/m³




12. Machine Configuration



No.

Configuration

Unit

Qty.

Manufacturer

1

Cabinet

set

1

Etelux

2

Transition cabin

set

1

Etelux

3

Control system

set

1

Germany Siemens Omron electronic devices, etc

4

Circulation system               (including purification and regeneration system)

set

1

BASF in Germany, UOP purification material in USA and Baldor valve in

Germany

5

display system

set

1

Siemens, Germany

6

glove

pair

1

U.S.A

7

Pipeline interface

set

1

French lecoli

8

Pressure gauge

set

1

Wika, Germany

9

PLC water analyzer

set

1

Michell, UK

10

PLC oxygen analyzer

set

1

Avcray, USA

11

Vacuum pump

set

1

RV12

12

Organic solvent adsorption

set

1

Etelux
