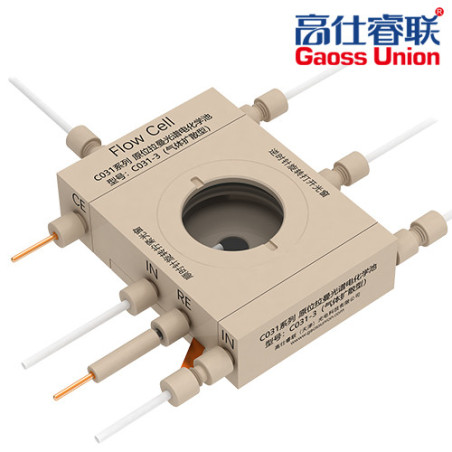

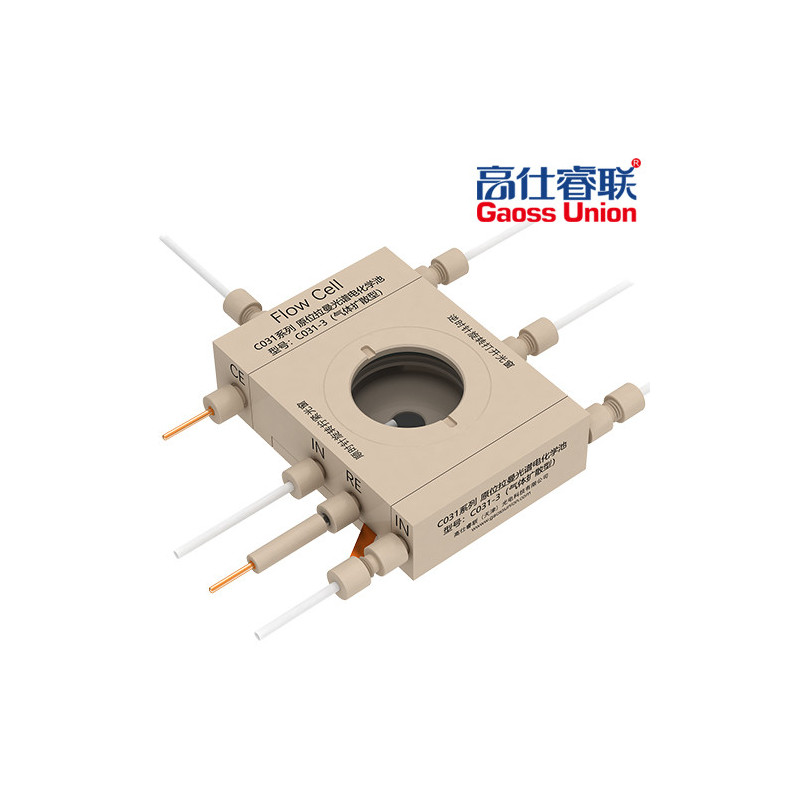

GSU C031-3 Series In-Situ Raman Spectroelectrochemical Cell

GSU C031-3H

C031-3 系列 原位拉曼光谱电化学池


In-situ Electrochemical Cell

Designed for observing in-situ spectral and morphological changes of electrode materials during electrochemical experiments.

Optimized Optical Observation
The working electrode (WE) is positioned directly beneath a quartz observation window, allowing real-time monitoring via optical instruments.

Two-Chamber Design with Easy Membrane Replacement
Anode and cathode chambers are sealed with screws and separated by an ion exchange membrane (provided by user). This effectively prevents interference from the anode on the cathode.

Integrated Gas Diffusion Channel
A gas pathway is built into the lower part of the cathode chamber, enabling gas diffusion experiments.

Compatible with Flow Systems
Supports in-situ electrochemical testing in flow systems and allows simple electrolyte injection via syringe.

Key Specifications

  • Distance from working electrode to observation window:<6mm
  • Optical window diameter: 37 mm
  • Working electrode area: 1 cm² (custom sizes available)

Working Electrode Options

  • Typically uses a gas diffusion electrode (GDE) for gas-related studies
  • Also compatible with metal sheets, glassy carbon, ITO, FTO, etc.
  • Note: Working electrode material sold separately

Standard Configuration Includes

  • Ag/AgCl reference electrode
  • High-purity graphite rod as counter electrode
X254-00060
