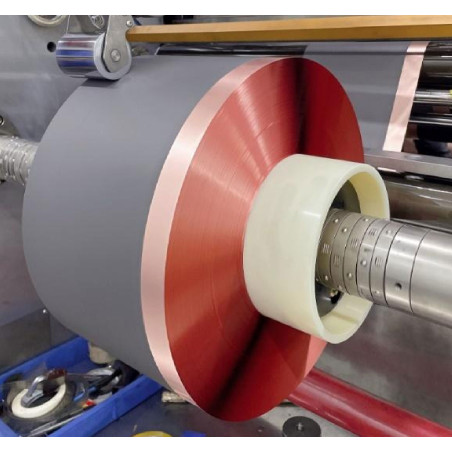

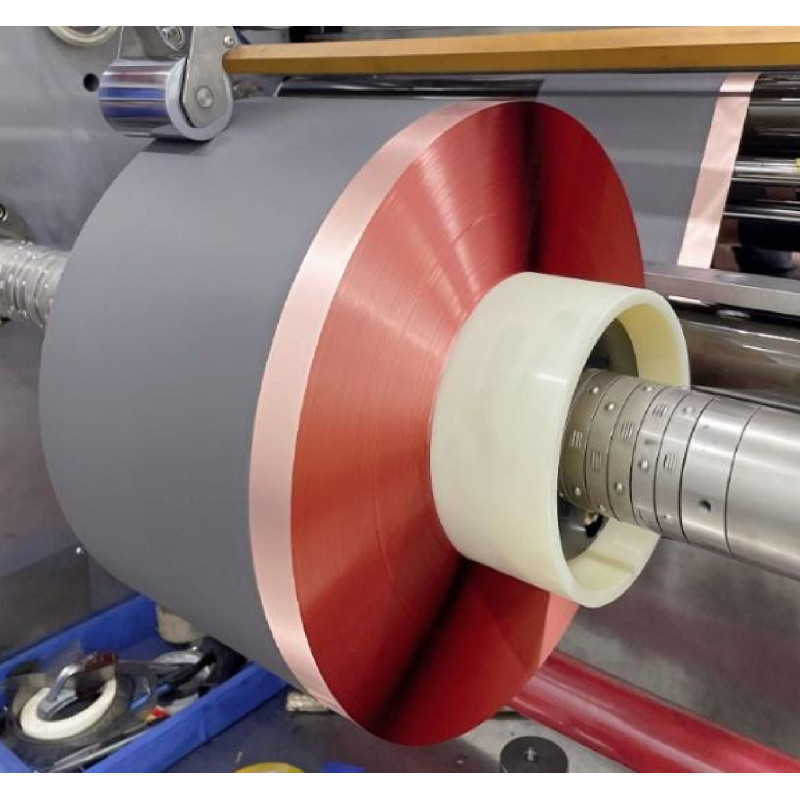

Electrode Roll Anode - Graphite coated on Cu Foil
Minimum Order 2000m.
Graphite Continuously Coated on Cu foil
Cu Foil: width 87mm * 8um thickness (±1um)
Coating width: 62mm(±1mm)
Uncoated area (on one side): 25mm
Loading level: 5.75 g/cm2(one side)
Loading level: 11.50 g/cm2(both sides)
Thickness after calendaring: 88um(±3um)
Vacuum packed. Core size customizable.
