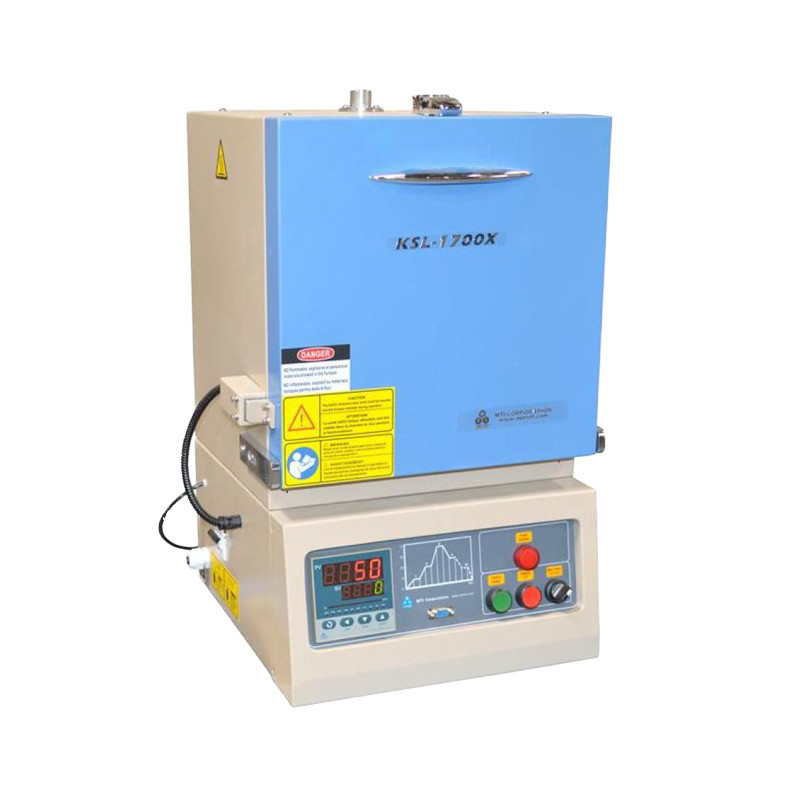

KSL-1700X-S High Temp Muffle Furnace 1700°C 1.7L
search
  • KSL-1700X-S High Temp Muffle Furnace 1700°C 1.7L

KSL-1700X-S High Temp Muffle Furnace 1700°C 1.7L

KSL-1700X-S Furnace 1.7L

KSL 1700X S马弗炉高温炉1700℃高温箱式炉1.7L
-

Furnace Structure

High-efficiency 1800-grade alumina fiber insulation with reflective coating for maximum energy savings

Double-layer steel housing with built-in air-cooling fan to maintain external casing temperature below 60°C

Drop-down front door design for easy and safe sample loading

Equipped with a gas inlet (rear) and exhaust vent (top) for gas-controlled thermal processing

Power Supply

Voltage: AC 208–240V, 50/60Hz, Single Phase

Power Consumption: 2.5 kW (max), <1 kW when heating at 10°C/min

Note: Power plug not included

Temperature Performance

Standard Operating Temperature: 1600°C (2912°F) continuous

Maximum Temperature: 1700°C (3092°F) for up to 3 hours

Heating Rate: 0–20°C/min (≤10°C/min recommended for optimal lifespan)

Temperature Stability: ±1°C

Temperature Uniformity: ±5°C over 50 mm (2") @ 1600°C

Heating Chamber Dimensions

120 mm (L) × 120 mm (W) × 120 mm (H)

Volume: 1.7 Litersi.php?t.png&rid=gw-1.6824009695760&p=793436111&k=69382&t=1747189912
